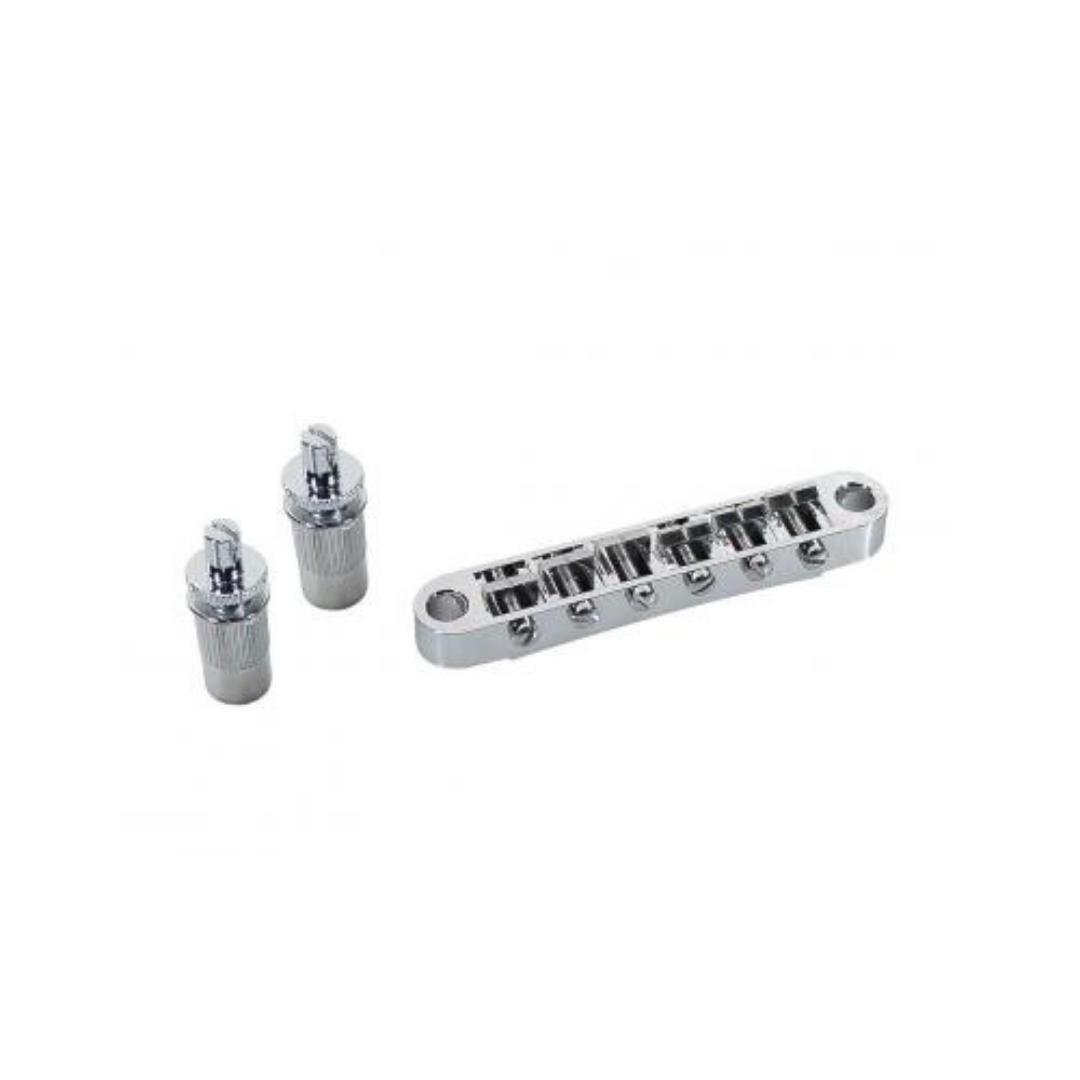

Boston Tune-o- Matic Bridge Chrome B-166-C

Bridge for e-guitar, tune-o-matic, stud spacing 74,0mm, 12' radius, chrome

Boston Musical Products is also known for its wide range of guitar parts for both electric and acoustic guitars, but also bass and other string instruments. With over 3,000 guitar parts, Boston is ideal to upgrade or repair your instrument, but also building your own instrument is a possibility.

Specifications:

• Bushing diameter: 12mm
• Bushing length: 19,5mm
• Thread studs: M8
• Spacing studs: 74,0mm
• String spacing E-e: 52mm
• Diameter studhole: 6mm
• Radius: 12"
• Wire retainer: no
• Saddles notched: yes
• Finish: chrome
