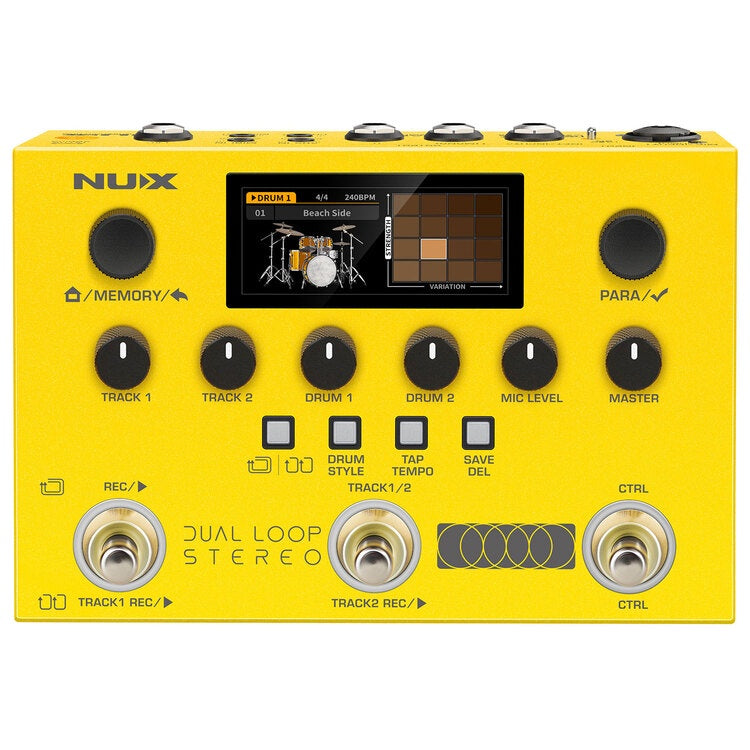

NU-X Dual Loop Stereo Pedal

Dual Loop Stereo is a complete self-accompaniment workbench designed for soloists and guitar/vocalists to build and manipulate rhythmic layers into complete backing tracks. Here's what makes it stand out:

Key Features

• Two Independent Loop Tracks: Record, dub, and play back two completely separate sections of a song for a real, dynamic song structure.
• Mic/Line Input: Loop vocals along with your guitar or use it as one side of a stereo input, feeding into the stereo outputs.
• Comprehensive Drum Machine: Choose from various styles with 2 selectable patterns per memory slot.
• Digital Reverb: Add reverb to rhythm tracks for a polished sound.
• Octave Effect: Create bass lines on the fly.
• Boost and Amp Simulation: Perfect for crafting electric guitar tones.
• External Pedal & MIDI Integration: Connect an external footswitch or expression pedal for additional control, or use MIDI for external control and patch selection.
• USB Connectivity: Save recorded loops to a DAW or load them back into the pedal as needed.
• 13 Hours of Recording Time: Share up to 13 hours of audio across 99 memory slots.

Specifications

• Power Supply: 9Vdc 500mA pin negative (ACD-006A recommended)
• Sampling Format: 44.1kHz, 32-bit
• Recording: Up to 13 hours (max 1.5 hours per track)
• Memories: 99
• Accompaniment: 40 drum groups, 640 patterns
• Effects: Octave, Booster, Amp Simulation (+ Reverb for rhythm section)
• Input Level: 6dBu max. (mic), 8dBu max. (line/instrument)
• Input Gain: 5.4dB to 63dB (mic input)
• Input Impedance: 2.4k Ohms (mic), 1M Ohm (line/instrument)
• Output Impedance: 1k Ohm (main out), 3.3 Ohm (phones)
• Display: 73mm colour LCD
• Input Connections: Mic/Input 1 (XLR/6.3mm), Inst/Input 2 (6.3mm)
• Output Connections: L/Mono + R (6.3mm), Phones (3.5mm)
• Other Connections: MIDI in/out (3.5mm), Expression (6.3mm), USB (Type-C), DC (5.5x2.1mm)
• Dimensions: 184 x 123 x 51mm
• Weight: 912g

Highlights

• 99 Phrase Memories: Store and recall your loops with ease.
• Dual Independent Loop Tracks: Perfect for creating complex song structures.
• Wide Drum Selection: Access 640 patterns across 40 groups with 2 drum tracks per memory.
• On-the-Fly Effects: Includes Octave, Booster, and Amp Simulation for creative flexibility.
• Expand Your Control: Use external pedals or MIDI for enhanced functionality.
• Portable and Powerful: Compact size and lightweight design make it ideal for live performances or songwriting.

The Dual Loop Stereo is the ultimate tool for solo performers and songwriters, offering the power and flexibility to serve as the foundation for live shows or as a rhythmic sketchpad for your creative process.
