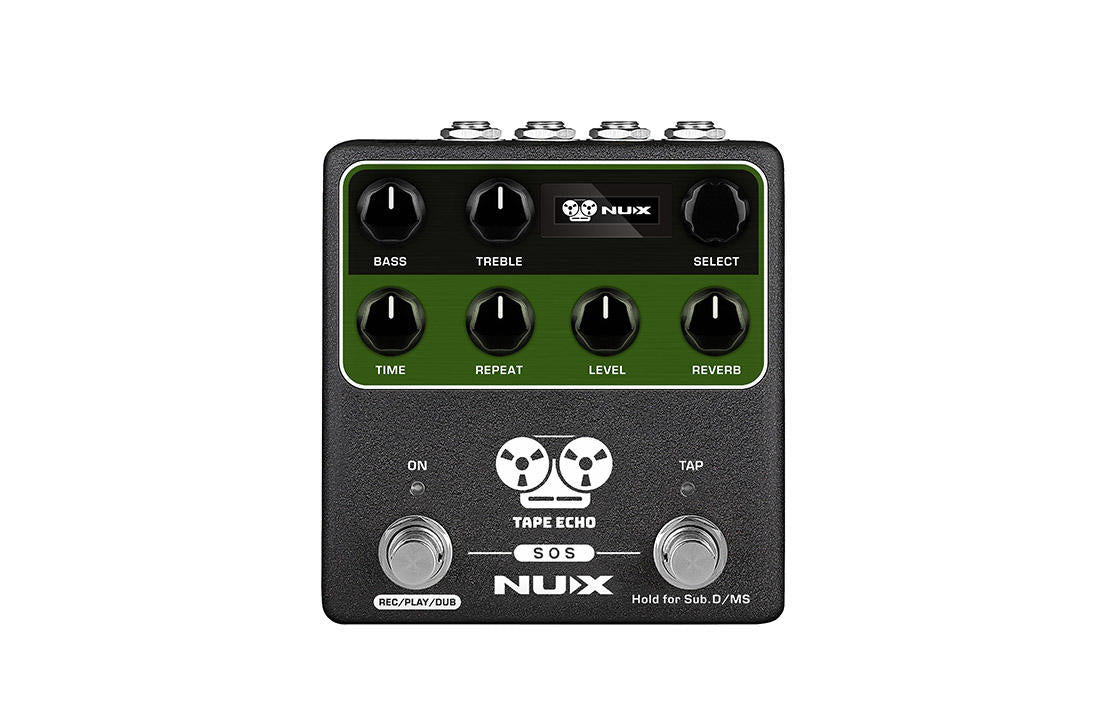

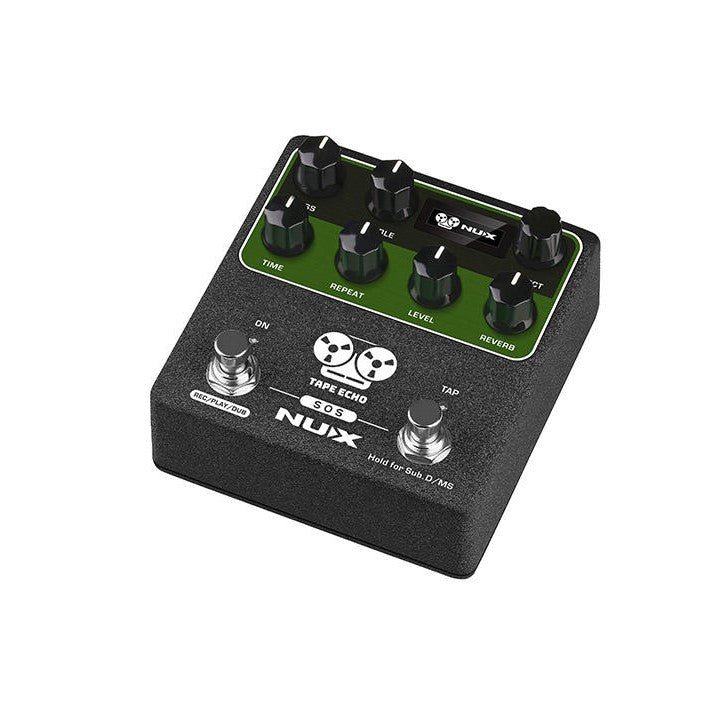

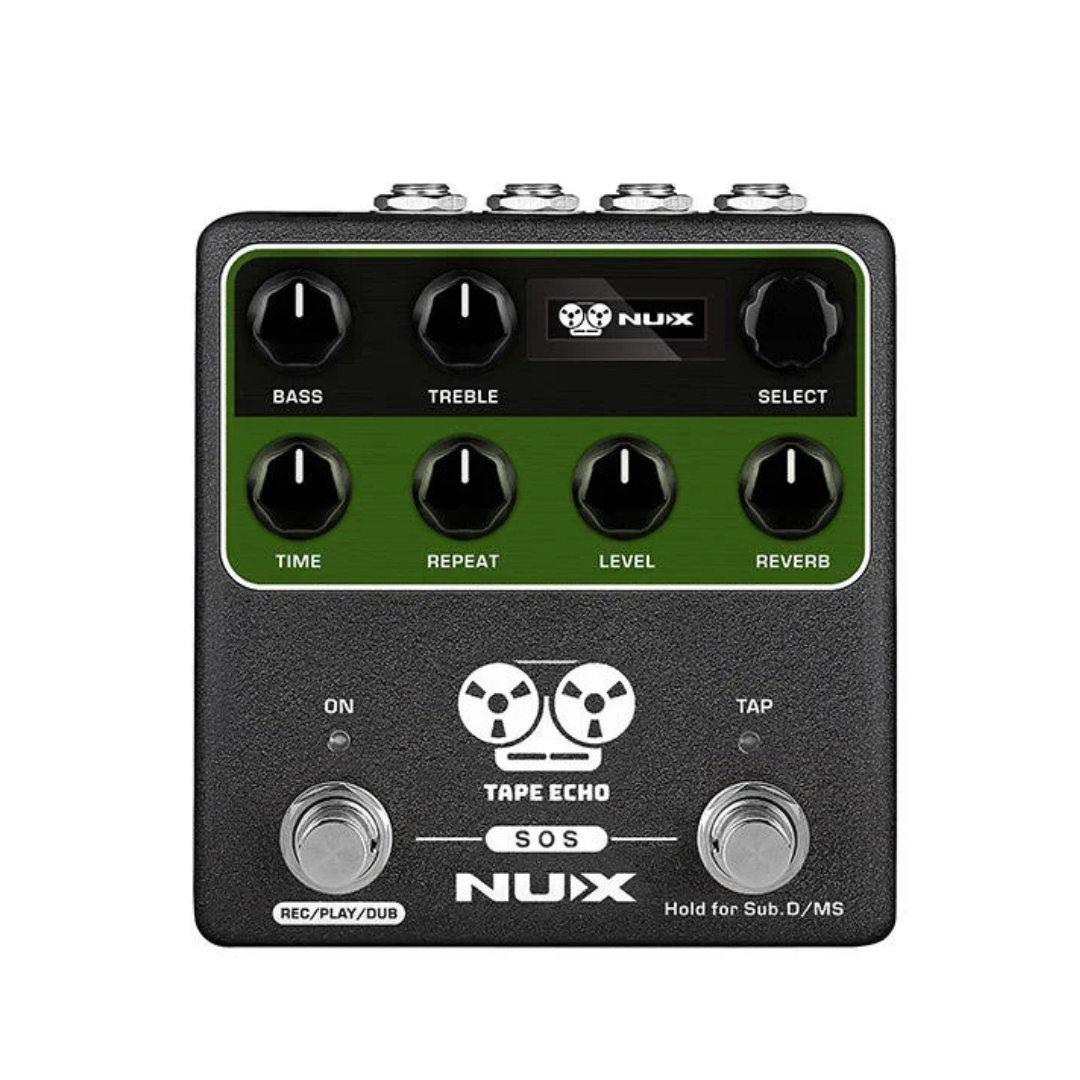

NUX Tape Echo NDD-7

The NUX NDD-7 Tape Echo is an echo and delay processor with 7 different types of simulation to recreate the sound of vintage echo units.

In addition to classic tape echo simulation, the NDD-7 has a separate spring reverb effect, sound-on-sound (SOS) for operation as a 40 second looper, and up to 1600ms of delay.

• Up to 1600ms stereo delay time by Tap Temp
• 7 Repro-Tape Heads combinations and Reverb only

• Core-Image technology brings natural Tape Echo with parallel spring reverb sound
• back

• Holding ON footswitch for self-feedback

• Sub-division time signature with Tap Tempo foot switch

• 40 seconds stereo phrase loop with OLED status display

• Optional delay time display (MS / BPM)

• MIDI In/Out

• Holding ON footswitch for self-feedback
  Specifications
• Sampling rate：48kHz

• A/D Converter：32Bit

• Signal Processing：32Bit

• Frequency Response：20Hz~20kHz - ±1dB

• Input Impedance：5MΩ

• Maximum input level：1.5Vrms

• Output Impedance：100Ω

• Maximum output level：1.5Vrms

• System Latency：1ms

• Dynamic Range：103dBu/105dBu(A-Weighting)

• THD+N Ratio：0.0038% @ input 1Vrms_1kHz ；0.01% @ input 1.5Vrms_1kHz

• Power：9V DC(Negative tip, Optional ACD-006A adapter)

• Current Draw：approximately 100mA，<150mA

• Dimensions：105mm(L)x115mm(W)x58(H)mm

• Weight：440g
