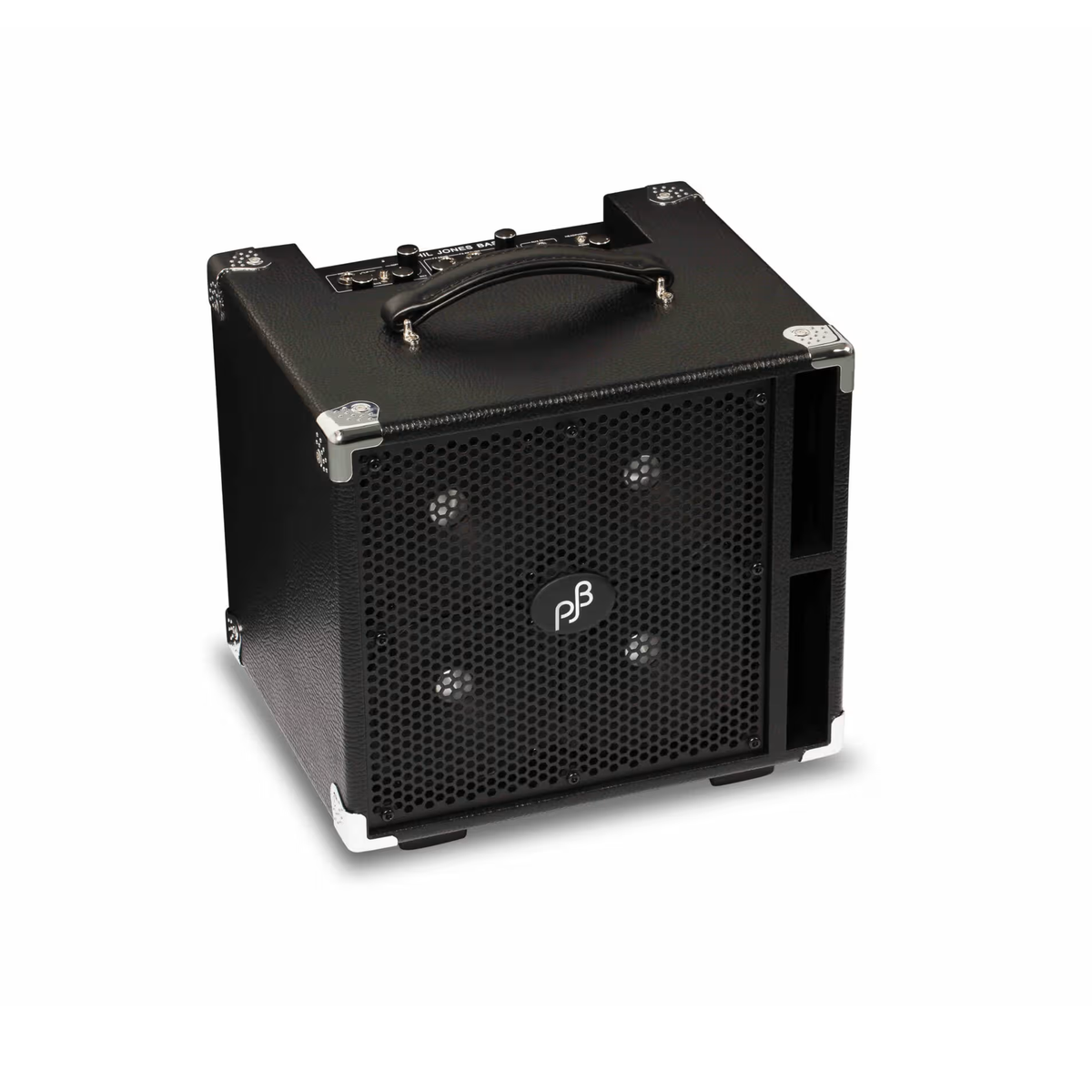

Phil Jones BG-450 Combo

Compact Plus BG-450: Powerful Small Combo

The Compact Plus BG-450 is the pinnacle of PJB’s line of small and lightweight, yet powerful compact bass combos. It boasts the same size as PJB’s C-4 speaker enclosure but houses a power amplifier capable of reaching up to 500 Watts with its four internal 5” drivers.

Unmatched Sound and Efficiency

• Equipped with PJB’s latest proprietary chrome dome drivers, these are the most efficient five-inch speakers ever engineered by PJB.
• Delivers a punchy sound that cuts through the air “like a knife through butter.”
• Provides a solid, powerful low-end response typically associated with much larger combos.
• Remarkably lightweight, ensuring portability without compromising sound quality.

Advanced Power and Pre-Amp Technology

• Features an ultra-high-energy power supply utilizing a Class D power amplifier for high efficiency, resulting in less heat and weight.
• Includes a pure Class-A, ultra-low noise pre-amp, offering a massive dynamic range for optimal tone in any playing situation.

Precision Tone Control

• Single-channel pre-amp with a variable gain input section, compatible with both active and passive basses.
• Includes a mute switch and the classic PJB 5-band precision EQ system, providing the broadest tonal range imaginable with just five controls.
• Allows players to find their perfect tone effortlessly in seconds.

Versatile Connectivity Options

• Send/Return FX patch enables blending with the direct signal for expanded tonal possibilities.
• Secondary AUX input (1/8” stereo jack) allows practice with backing tracks.
• Back panel features:
  • Line Output jack for use in slave mode with additional amps.
  • Line Input for connecting an external pre-amp.
  • DI balanced out with pre/post EQ options and a ground lift to eliminate hum.
  • Speaker output via a Speakon NL4 socket, ideal for pairing with a C4 or C8 cabinet.

Power Output and Flexibility

• Produces 300 watts with its internal speakers and up to 500 watts when connected to an external cabinet.
• Suitable for a wide range of playing environments.
• For higher volume demands, PJB recommends the BP-800 amp with PJB cabinets or the BG-800 Roadcase as more powerful alternatives.

Specifications

• Model: BG-450
• Speaker Driver: 4×5 Inch PJB Driver
• Amplifier:
  • Class D amplifier with digital switch-mode power supply
  • Power Output: 300W (internal speakers), 500W (with 8-ohm external speaker)
• Signal-to-Noise Ratio: ≥85 dB(A) (EQ off, volume on full)
• Impedance:
  • Passive Input: >2MΩ/22pF
  • Active Input: >100KΩ/22pF
  • Line Input: >22KΩ
  • Pre-Amp Line Out: <2KΩ
  • Balanced Out: <200Ω
• Input Levels:
  • Passive Input: 10mV–1.5V
  • Active Input: 20mV–4.5V
  • Line Input: 600mV
  • Pre-Amp Line Out: 1.2V
  • Balanced Out: Typical 500mV
• EQ Center Frequencies: 50Hz, 160Hz, 630Hz, 2.5KHz, 12KHz at ±18dB
• Dimensions:
  • 361(W) × 362(H) × 336(D) mm
  • 14.21(W) × 14.25(H) × 13.24(D) inches
• Net Weight: 14 kg (31 lbs)

The Compact Plus BG-450 is the ultimate blend of portability, power, and precision, making it a must-have for bass players seeking exceptional sound quality in a compact design.
