Phil Jones BP800 Compact Bass Head

High Power & High Performance

Small and lightweight just got more powerful with the introduction of Phil Jones Bass’ BP-800 bass amplifier. This high power, high performance, no-compromise compact amplifier delivers more bass for the buck. Featuring a Class A pre-amp with the popular PJB 5-Band EQ, the BP-800 is designed to meet the needs of bass players who demand both portability and superior sound quality.

Rugged Design for Live Performance

Despite weighing only 5.7 lbs and measuring 7.5” wide, the BP-800 is built to withstand the rigors of live performance and travel. Its rugged construction includes:

• A quarter-inch thick CNC-machined blue front panel.
• A chassis made from thick aluminum extrusion, ensuring incredible durability.
• Solid aluminum billet control knobs, offering a high-end look and feel.

Worldwide Compatibility

The BP-800 is engineered for global use, working seamlessly with any AC voltage from 100-240 volts. This means you can travel worldwide without worrying about switching to local AC supply voltages.

Power Output:

• 400 watts into 8 Ohms.
• 800 watts into 4 Ohms (maximum load).

Dimensions:
7.5” wide x 2.5” high x 12.5” deep.

Comprehensive Features

The BP-800 is packed with features to enhance your playing experience:

• Mute / Passive / Active Switch.
• Headphone out and auxiliary input jacks.
• Balanced line out with pre/post EQ and ground lift switches.
• FX send/return jacks.
• Pre-amp out and Power amp input jacks.
• High-current Speakon out.

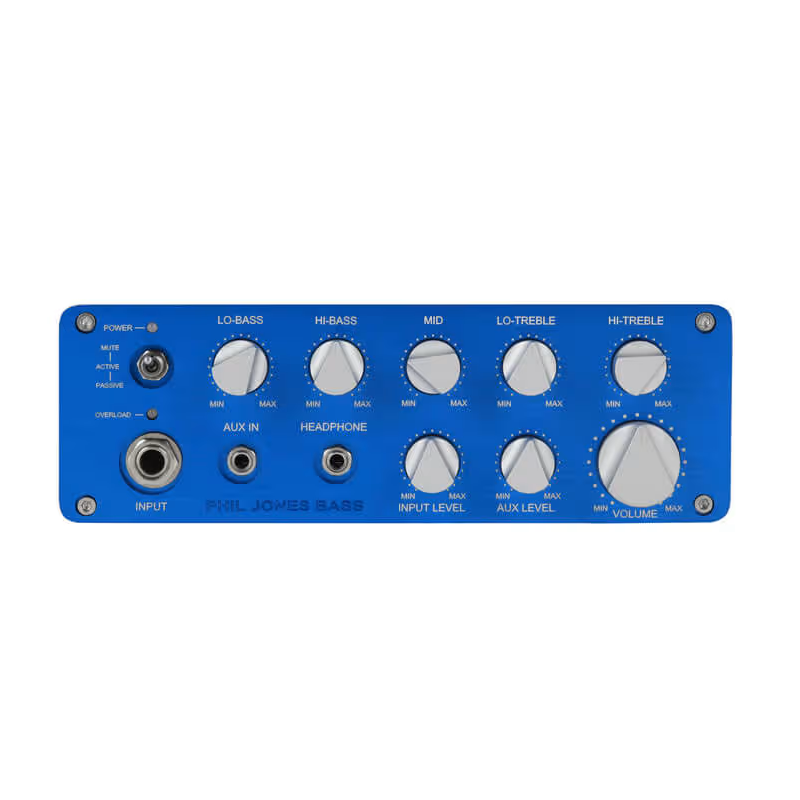

Panel Description

Here’s a detailed breakdown of the BP-800’s panel controls and features:

1. POWER ON INDICATOR
2. MUTE/ACTIVE/PASSIVE SELECTOR SWITCH
3. OVERLOAD INDICATOR
4. INSTRUMENT INPUT JACK
5. LOW BASS EQ CONTROL
6. HIGH BASS EQ CONTROL
7. MID RANGE EQ CONTROL
8. LOW TREBLE EQ CONTROL
9. HIGH TREBLE (PRESENCE) EQ CONTROL
10. AUXILIARY STEREO INPUT JACK
11. HEADPHONE OUT SOCKET
12. INSTRUMENT INPUT LEVEL
13. AUXILIARY INPUT LEVEL
14. MASTER VOLUME CONTROL
15. BALANCED LINE OUT XLR SOCKET
16. PRE/POST EQ BALANCED LINE OUT
17. GROUND LIFT BALANCED LINE OUT
18. LINE IN: TO POWER AMP BYPASSING THE PRE-AMP
19. LINE OUT FROM PRE-AMP
20. FX SEND
21. FX RETURN
22. SPEAKER OUTPUT
23. MAIN POWER ON/OFF SWITCH
24. AC INPUT AC (IEC) SOCKET

Specifications

• Model: BP-800
• Power Output (RMS): 800w/4Ω, 400w/8Ω
• EQ: 5-BAND EQ
• Input: 1 x Input, 1 x mini switch (Mute/Low/High)
• Output: Speaker-Out, DI-Out, Line-Out, Headphone-Out
• Other: AUX-Input
• Power: 100–240V AC
• Dimensions: 7.5 x 12.5 x 2.5 inches / 190 x 317 x 63 mm (W x D x H)
• Weight: 5.7 lbs / 2.59 kg

This compact yet powerful bass amp head is perfect for bass players seeking portability, durability, and unmatched sound performance.
